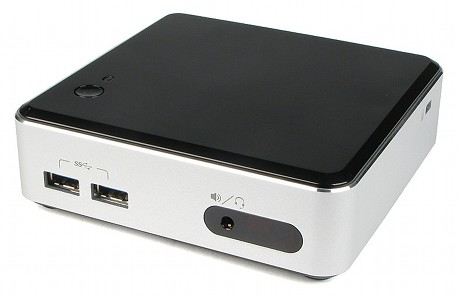

MOC 105 DK-G4 Intel NUC i5
Ultra Compact. Ultra Impact.
Key Features:
- Linux Desktop software Pre-installed
- Full Virtualization Capabilities and 4K Display Support
- Built with USB 3.0 and Intel® Tubo Technology
- Lighting fast storage with mSATA solid drive
- Thousands of apps to choose from Ubuntu Software Center
- Quality hardware with Open Source software integrated
Portable
Fits into the palm of your hand. No need to say more.
Energy Efficient
Don't waste unnecessary power. Save Smart.
Powerful
No need to worry when performance is a must. Intel® i5 Fourth Generation and Turbo Speed up to 2.6 GHz.
Silently
Not accompanied by any sound when running.
Multipurpose
Desktop, Workstation, Digital Signature, HTTV, Mini Servers
Open
Optimized and carefully tested Linux based Operating System pre-Installed.
Details
- Intel® NUC Kit D54250WYK
- 4rd Generation Intel® Core™ i5-4250U 1.3GHz - 2.6 GHz
- Up to 16GB of Memory RAM
- Solid High Speed Hard Drive
- Intel® HD Graphics 5000 (4K Support)
- Dual display with Mini Display port and HDMI
- Front and Back panel USB 3.0 ports
- Intel® Wireless N Adapter (Optional)
- Gigabit LAN connection
Next Unit of Computing (NUC). With a visibly smart Intel® Core i5 processor in a highly customizable package, the NUC is a breakthrough in compact but impactful computing.
Drive dual digital displays at once with Mini Display port and HDMI.
Get reliable connectivity through Gigabit LAN.
Effortlessly move between applications with smart multitasking delivered by Intel® Hyper-Threading Technology.
Intel® High Definition Audio (Intel® HD Audio) via HDMI 1.4a and Displayport 1.2 outputs supporting 8 channel (7.1) digital audio.
Headphone/microphone jack on the front panel
Supports Intel® 64 architecture
Intel® NUC Board D54250WYB
Intel’s Next Unit of Computing Board D54250WYB is a tiny 4" x 4" x 1.5" with the power of the 4th generation Intel® Core™ i5 processor is at home in your living room, your office, or your media center.
The board is equipped with Intel® Turbo Boost Technology 2.0, automatically allowing processor cores to safely run faster than the base operating frequency. It also includes Intel® Rapid Start Technology, ensuring you are quickly up and running, and Intel® Smart Connect Technology to keep you up to date at all times.
Comes complete with Intel® HD Graphics 5000 for a brilliant HD experience, Intel® Quick Sync Video for fast video encoding, and DisplayPort 1.2 supporting 4k displays. Built-in stereo/mic jack along with four USB 3.0 ports and an infrared sensor for a remote control.
Ideal for a home entertainment system, a gaming machine, a digital jukebox, or all of the above. You can immerse yourself in movies, TV, or games in 4 inches square without the need for old fashion Tower PCs.

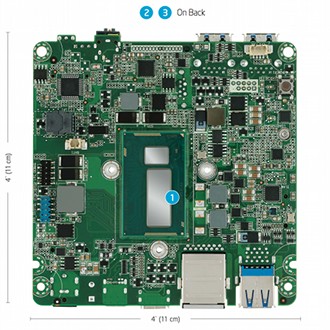

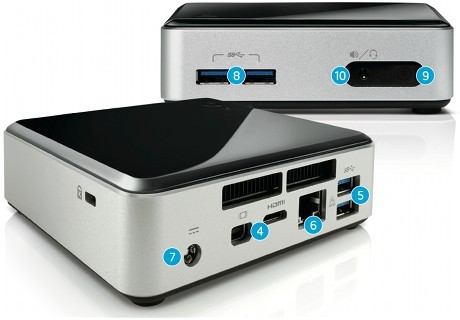

Board Layout
- Intel Core i5-4250U processor (1)
- Two SO-DIMM sockets for up to 16 GB Memory (2)
- Dual PCIe mini card connectors for wireless and SSD storage (3)
- One Mini DisplayPort DP 1.2 and one Mini HDMI port HDMI 1.4a (4)
- Dual rear Panel USB 3.0 ports (5)
- Intel® Gigabit LAN (6)
- 19V, 65 W DC power connector (7)
- Dual front panel USB 3.0 ports (8)
- Consumer infrared sensor (9)
- Headphone/microphone jack (10)
Based on Ubuntu Desktop
No just Apps, but Open Source Apps. There is a whole world of difference.
Key Features:
- Linux kernel configured for better hardware utilization
- Ubuntu latest software Pre-Installed
- Free security updates
- Thousands of apps to choose from Ubuntu Software Center
- State of the art security like no other proprietary OS
- Surf Internet without worries or Anti-virus needs
Ubuntu Desktop
An easy desktop environment to do any task fast and reliable. "The Ubuntu operating system powers millions of desktop PCs, laptops and servers around the world. Ubuntu will work with your existing PC files, printers, cameras, music players and smartphones — and it comes with thousands of free apps." Ubuntu site.
Surf the internet, be productive with documents, design media, develop without limits. Have fun!
